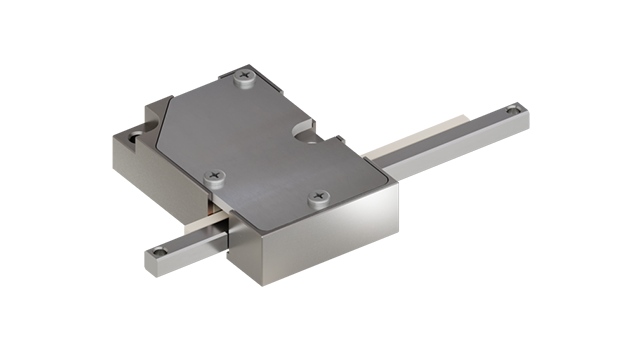

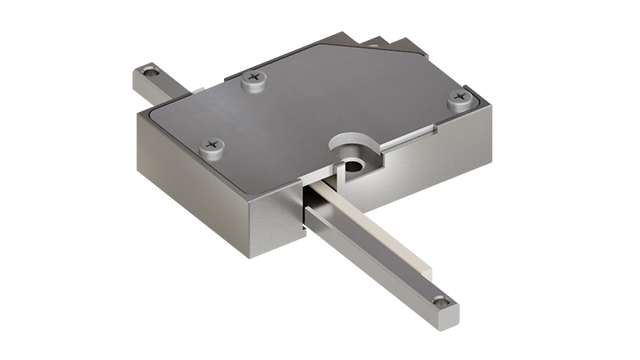

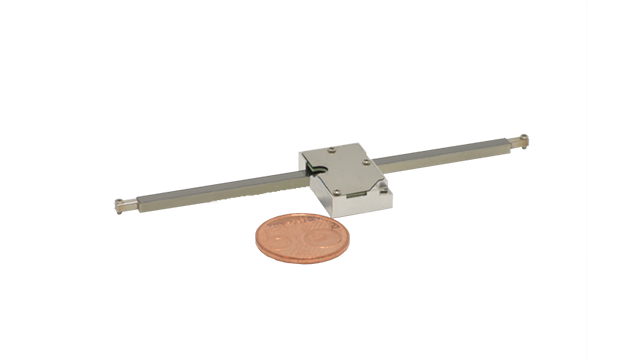

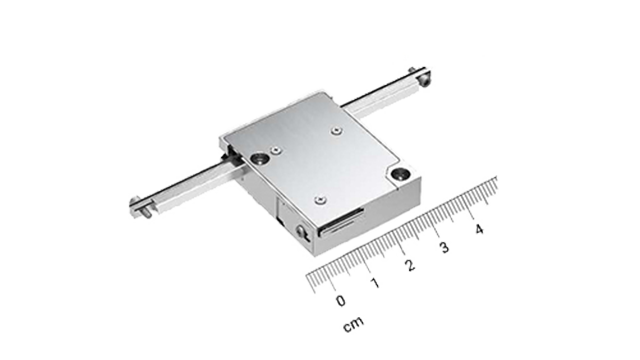

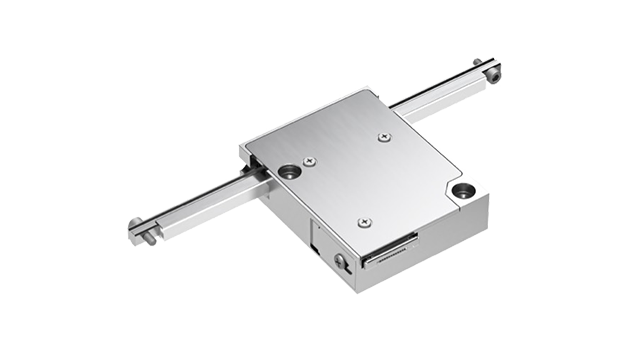

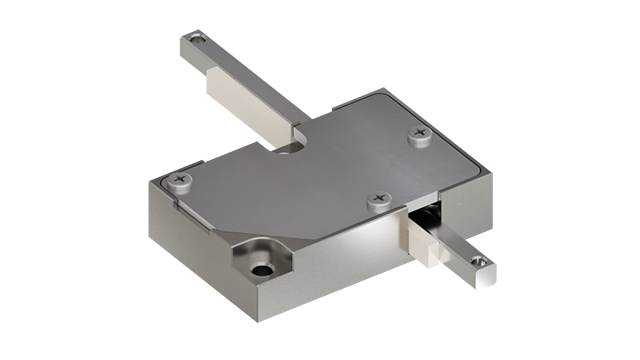

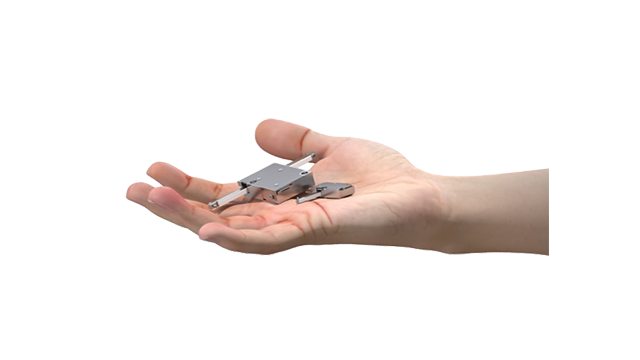

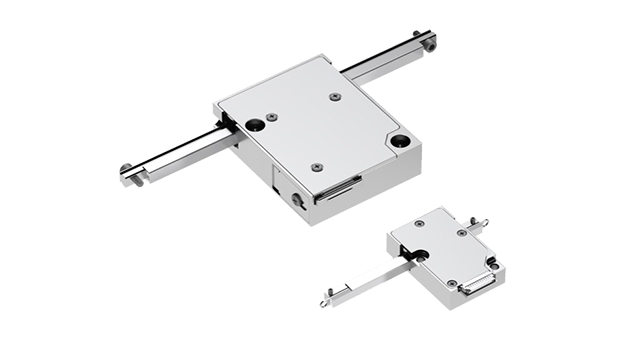

The Xeryon ultrasonic mini linear actuator is a precise and very fast micro actuator driven by our Crossfixx noiseless ultrasonic piezo motor. This allows for high speed motion and precise positioning. The open-loop model has (adjustable) magnetic limit-switches. The self-locking piezo motor holds the position of the actuator when it is not powered. As a result, energy consumption and heat generation are considerably reduced. The XLA is the fastest actuator of this size in the world! The XLA is a real OEM product but a break-out board is available for test setups.

Product Selection

Model	Image	Force N	Range mm	Weight g	Resolution nm	Repeatability nm	Speed
XLA-1		1	5 - 305	5.5 - 17.5	1250 350 80	± 1250 ± 350 ± 80	2 to 5 um/s Min. 400 mm/s Max.
XLA-3		3	10 - 290	37 - 55.4	1250 350 80	± 1250 ± 350 ± 80	2 to 5 um/s Min. 400 mm/s Max.
XLA-5		5	10 - 290	37 - 55.4	1250 350 80	± 1250 ± 350 ± 80	2 to 5 um/s Min. 400 mm/s Max.
